Cold forming of sheet metals workplace equipment

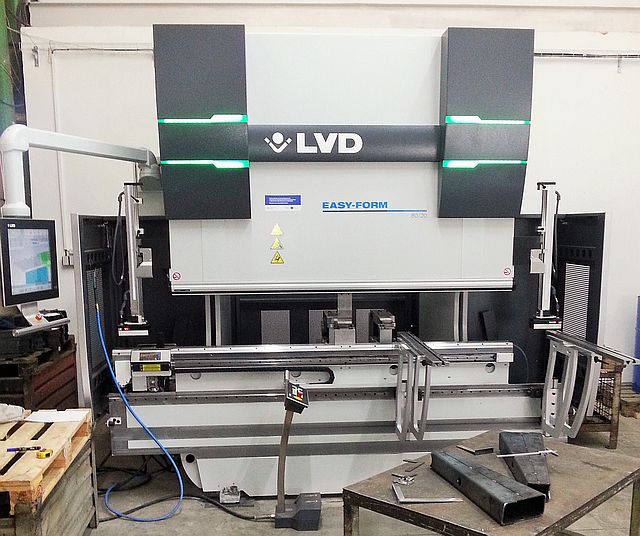

CNC hydraulic edging press LVD PPEB-EFL 80/2000-1550

It is a edging press with a pressing force of 800 kN. The advanced level of used drive concept and the optimum transfer of forming force ensure the perfect control in the bending process and repeatedly accurate and constant bending results are ensured in all areas of application. The edging press is equipped with technology to ensure accurate bending angles along its entire length with automatic non-contact measuring and angle correction during the bending process.

Technical data:

  • pressing force 80 t stroke - 200 mm
  • table-ram distance - 485 mm
  • lining in the side panels - 400 mm
  • table width - 120 mm
  • edging length - 2000 mm
  • working height - 970 mm
  • number of controlled axes - 9 (including CNC bombing)
  • backstop module X1, X2, Z1, Z2, R1, R2, L 600 mm (two stops with 1000 m reference)
  • angle measuring device Easy Form laser W

cnc hydraulic edging press ppeb - efl 220/3050 - 2600

Another hydraulic CNC edging press with a pressing force of 220 t and a working length of 3050 mm.

Technical data:

  • distance between the side panels - 2600 mm
  • stroke - 250 mm
  • table-ram distance - 485 mm
  • lining in the side panels - 400 mm table width - 120 mm
  • height - 3517 mm
  • length - 3885 mm
  • width - 2090 mm
  • working height - 970 mm

The machine is equipped with the following CNC axes:
axes Y1 - Y2, X - duo (stroke 600 a + 500 mm / + 400 mm extra area)
R - (200 mm)
Z1 and Z2, X (+/- 100 mm)
V - axis CNC bombing from L = 2500 mm
Easy Form laser W angle measuring device


Eccentric press LEN 40 C

  • cold pressing work (cutting, punching, bending, straightening)
  • press force 400 kN
  • stroke adjustment 8-95 mm
  • ram adjustment 60 mm

Eccentric press LEN 63 C

  • cold pressing work (cutting, punching, bending, straightening)
  • press force 630 kN
  • stroke adjustment 10-105 mm
  • ram adjustment 70 mm

LEXN-100 eccentric press

  • cold pressing work (cutting, punching, bending, straightening)
  • press force 1000 kN
  • stroke adjustment 125 mm
  • ram adjustment 90 mm

Eccentric press PEE-160

  • cold pressing work (cutting, bending, straightening)
  • press force 160 MPa
  • ram stroke 400 mm
  • ram adjustment 120 mm

Hydraulic press P-6324

  • pressing, calibration, bending
  • press force 250 kN
  • maximum opening 710 mm
  • stroke 500 mm

Crank press LDC 250

  • cold pressing work (cutting, shearing work)
  • press force 2500 kN
  • ram stroke 150 mm
  • ram adjustment 120 mm

Crank press LKO 315

  • cold pressing work (trimming)
  • press force 315 t
  • maximum opening 710 mm
  • stroke 180 mm

Crank press LUD 800/3150 F1

  • cold pressing work (cutting, punching, bending, straightening)
  • press pressure 800 MPa
  • ram stroke 315 mm
  • ram adjustment 150 mm
